3rd Special Forces Group
(Airborne)

Fort Bragg, North Carolina


Turn-key Installation

 120' Rohn 65G Tower
Log Periodic Yagis
Prosistel 'Big Boy' Rotor, TIC RingRotors
Custom Guy Anchors, Mast & Rotor Clamp
Array Solutions Antenna Switching
ICE Grounding Products



CLICK TO ENLARGE

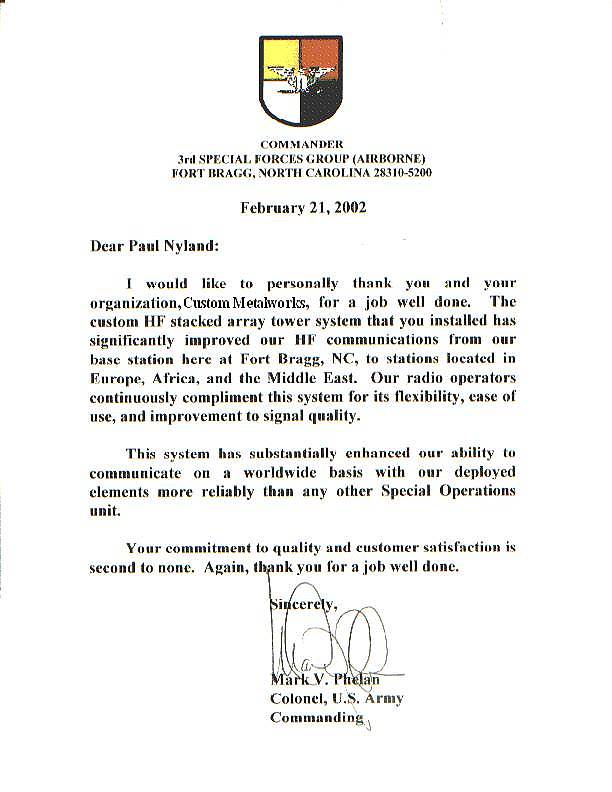

Letter Of
Recommendation

CLICK TO ENLARGE

  • The antenna system features stacked phased large log periodic antennas which are controlled by the Array Solutions StackMatch, four long wires and three NVIS antennas also controlled by a custom control system using two StackMatches and a SixPak RF Matrix. Tower is 120 feet tall with two star guy brackets. All Antennas rotate individually.

  • Top Log antenna is 60+ feet long with longest element of 77 feet. (6.5-30Mhz)

  • Mid and lower Logs are 42 feet long (13-30Mhz)

  • 4 Long wires are 900 feet long and 40 feet up Terminated in 600 ohms.

  • The long wires are fed with Array Solutions Baluns (2-30 Mhz).

  • 3 NVIS 234 foot dipoles (2-30 Mhz) are feed with Array Solutions Baluns and 600 ohm feed lines.

  • Radial field of 60 radials ~75 feet long installed for the long wire feed point.

  • This system has already proven itself in making long and short haul communications very reliable.

    •

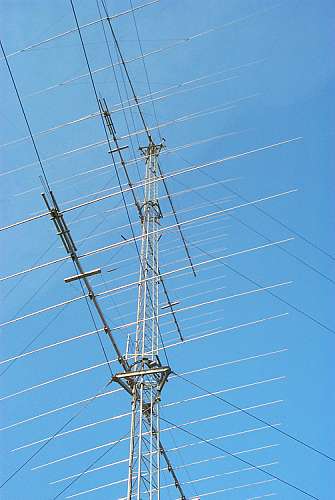

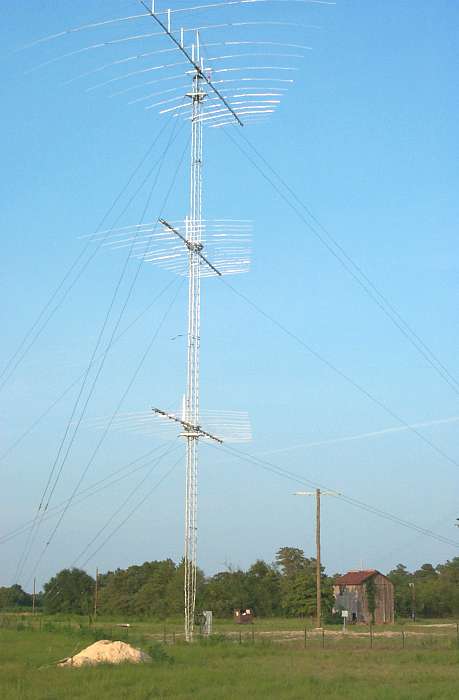

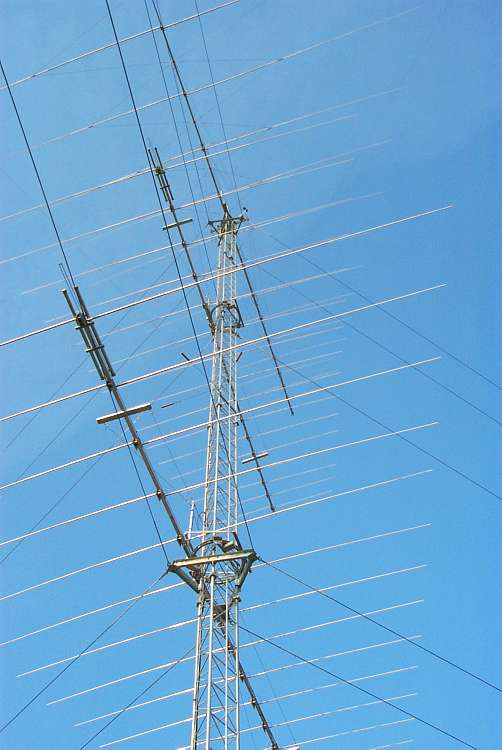

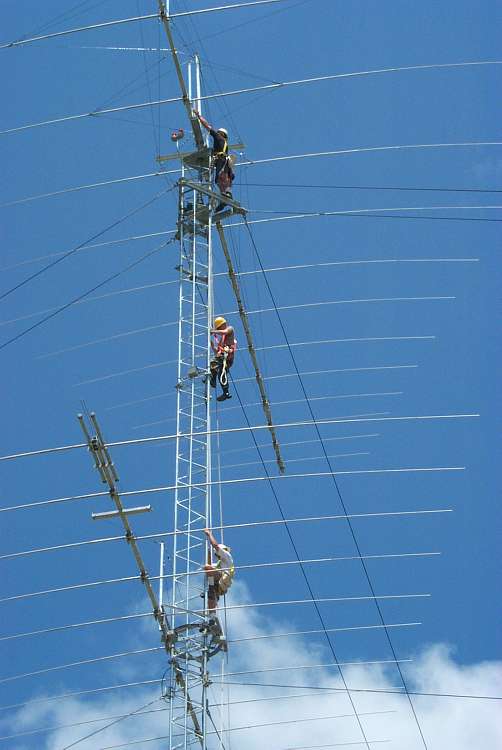

Antenna System Photos


Enlarge ---Super size

Enlarge ---Super size

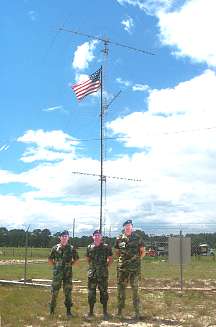

The Crew
CLICK IMAGES TO ENLARGE
Paul Nyland - K7PN
Owner of Custom Metalworks		 Jay Terleski - WX0B
Owner of Array Solutions
Zach - KD7QBU (aka. 'The Cube') Sgt. Denny Osgood


Project Construction Photos
CLICK IMAGES TO ENLARGE

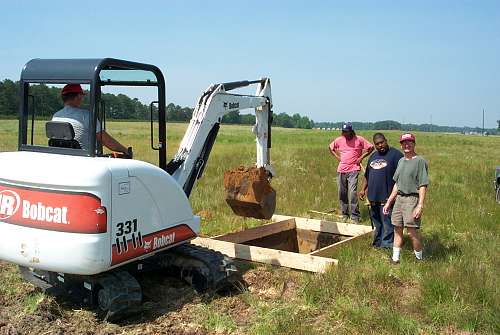

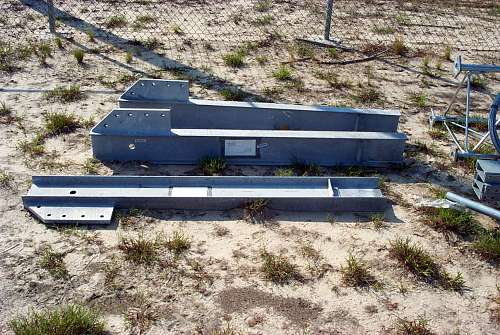

Digging the anchor holes Guy anchors designed and built by
Custom Metalworks

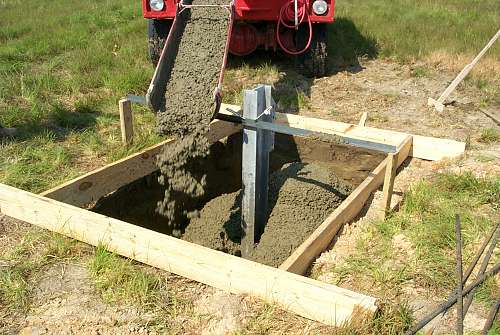

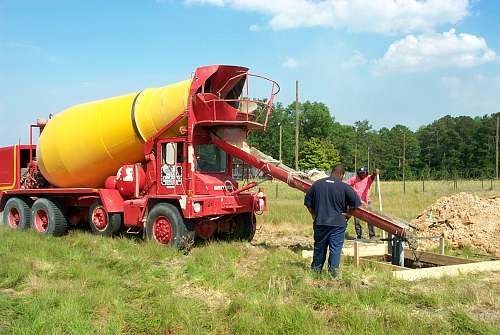

Pouring yards of concrete! The pour continues...

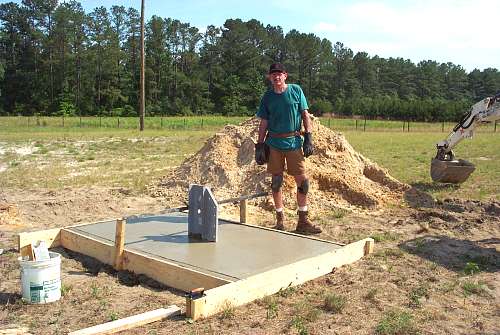

K7PN posing with finished guy anchor WX0B with Spaz the cat

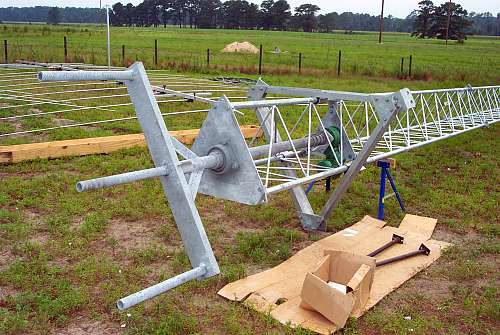

Pier pin tower base

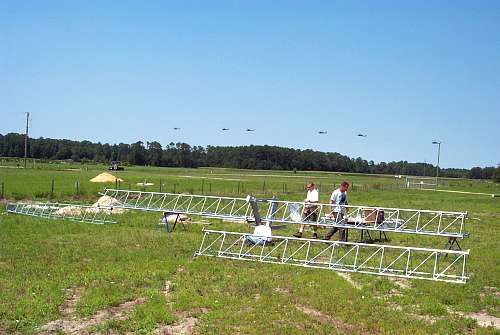

WX0B trying to communicate while the
C-130s fly by during an exercise		 Apache helicopters fly by

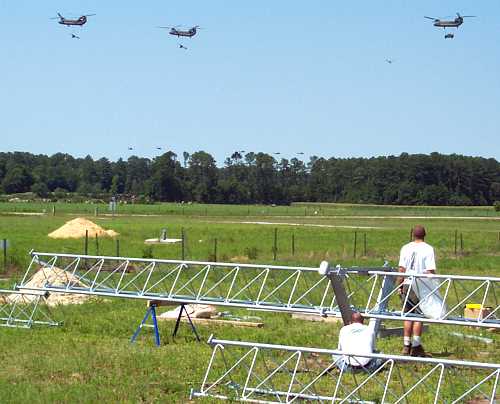

Chinook helicopters carrying
artillery pieces		 More Chinooks...  The one on the
right is carrying a Humvee
Custom mast assembly for top
Log Periodic yagi		 Another view of the mast
Prosistel PST-71 BigBoy rotor with

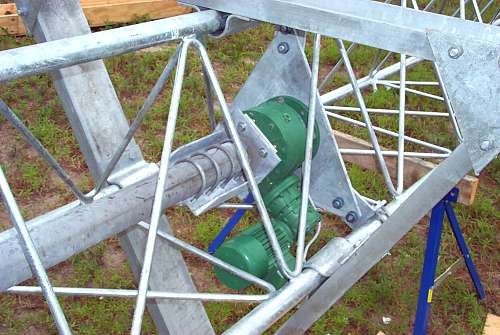

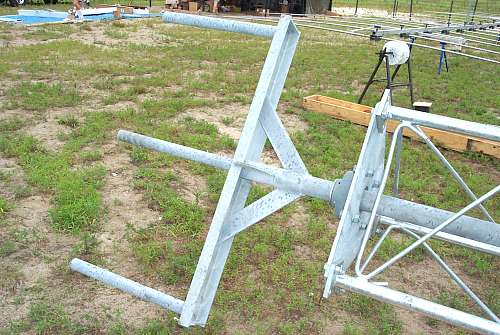

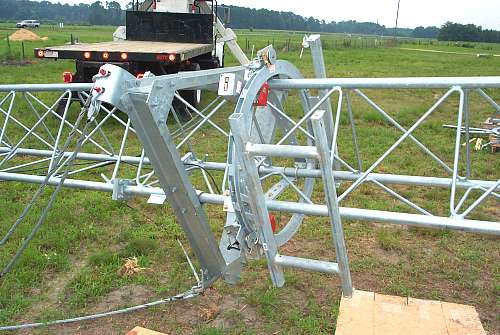

custom made mast clamp and rotor plate		 TIC RingRotor mounted above the
bottom anti-torque guy bracket

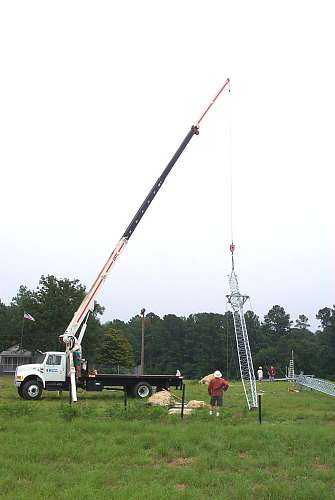

K7PN operating the boom truck crane Raising the lower part of the tower

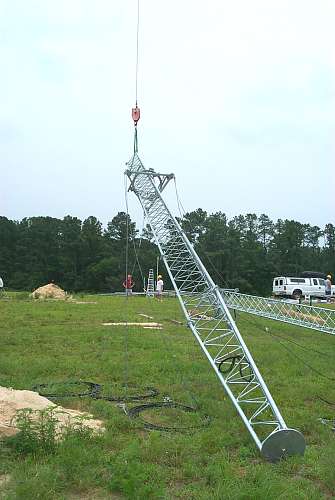

Up goes the lower part of the tower The lower part of the tower is held in
place by the crane while the guys
are connected to the anchors
Here's Zach, KD7QBU,
tensioning the guys		 Preparing to install the
upper part of the tower
Setting the upper tower sections Jay and Zach building antennas

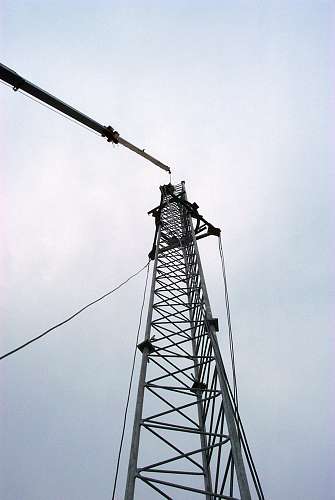

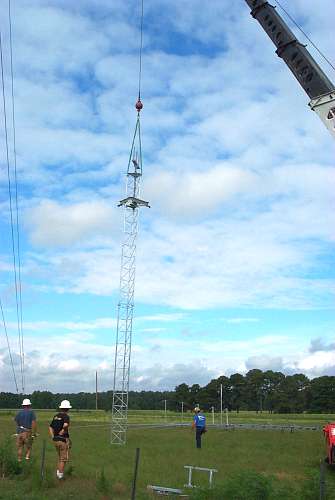

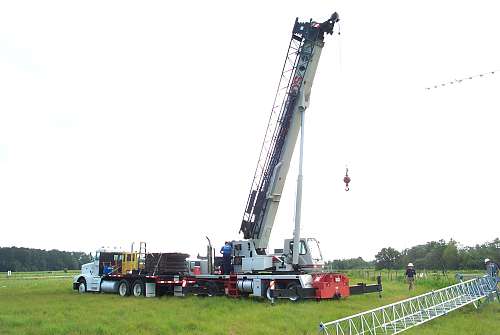

The big crane arrives to install the antennas Up goes the top of the tower

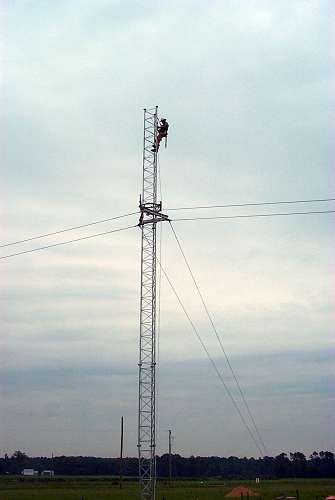

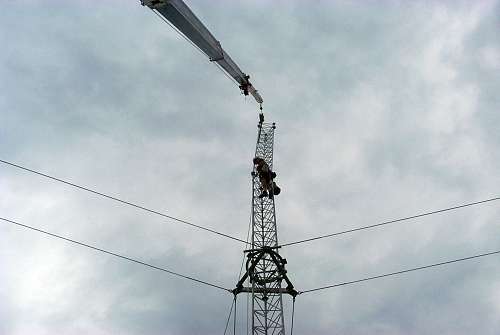

The top of the tower going up Top of the tower swinging into place

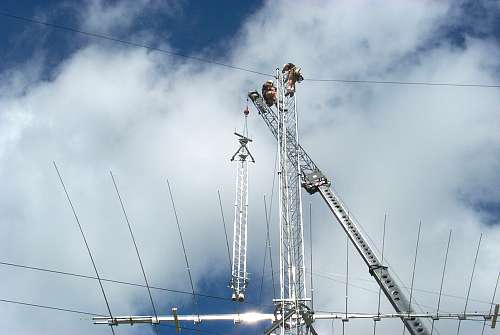

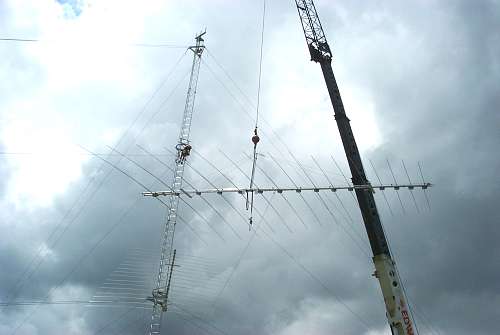

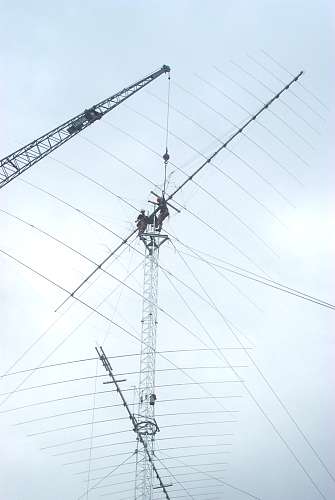

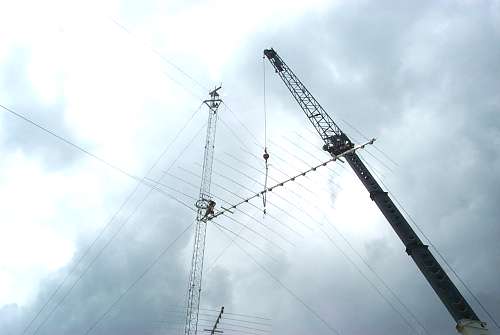

Securing the top of the tower Up goes the middle yagi

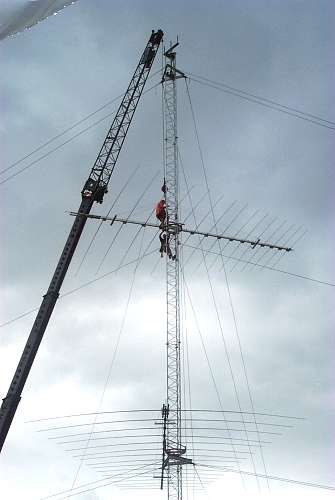

Middle antenna swinging into place Securing the middle yagi

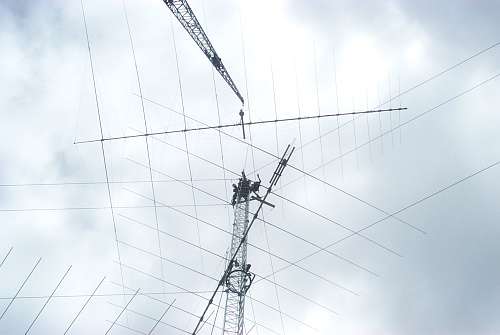

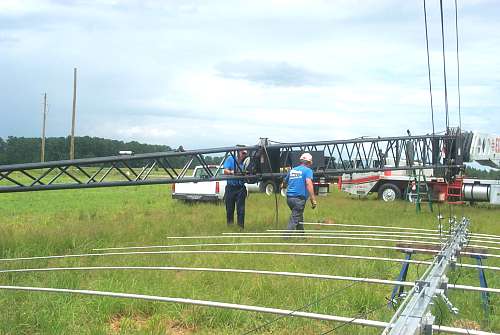

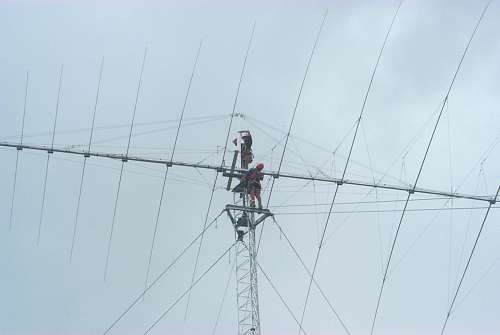

Preparing to pick the top yagi Setting the top yagi
Securing the top yagi Top antenna in place and all trussed up

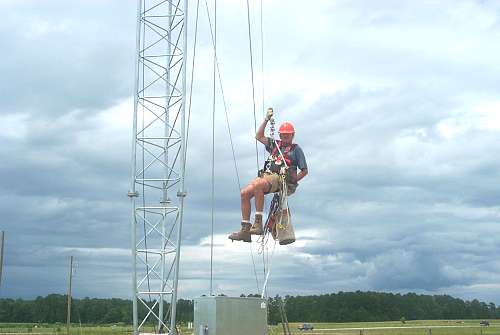

K7PN rappelling back to terra firma Ready to pull a few feedlines!
That's 10 spools of LMR-600

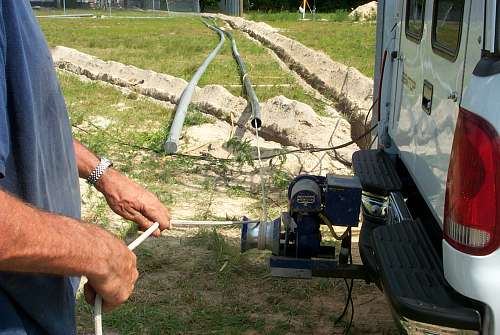

View of the tower from the radio shack K7PN manning the winch at the other end
of the feedline and control cable pull

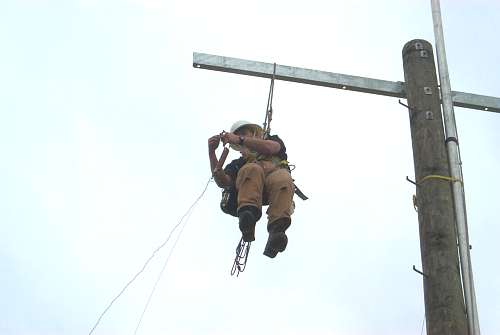

Zach attaching one end of the
wire antennas to the cross arm

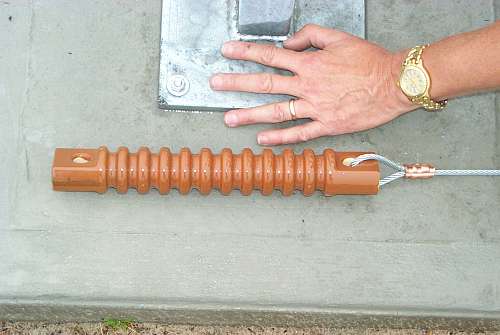

at the top of a telephone pole		 One of the end insulators
used on the wire antennas

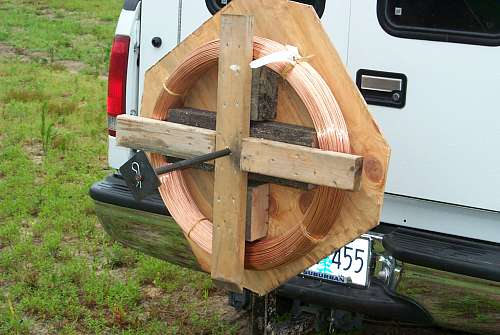

Copperweld antenna wire spooling fixture Wire antenna installation crew
Radial system at the feedpoint

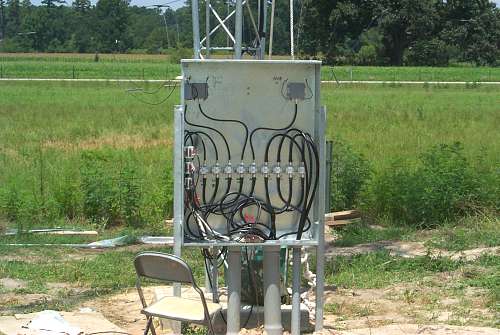

of the long wire antenna system 		Cable enclosure at the base of the tower

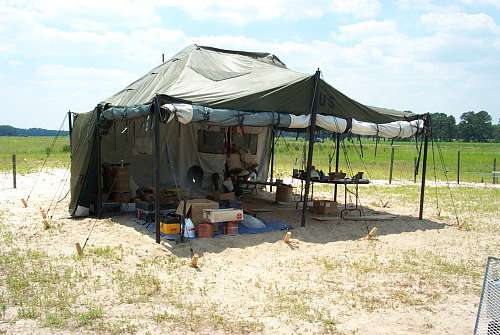

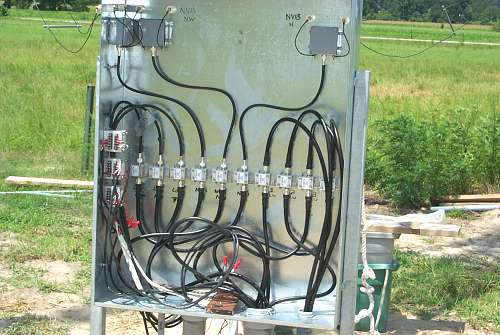

Close-up of the cable enclosure 3rd Special Forces provided us this
tent which served as our job shack

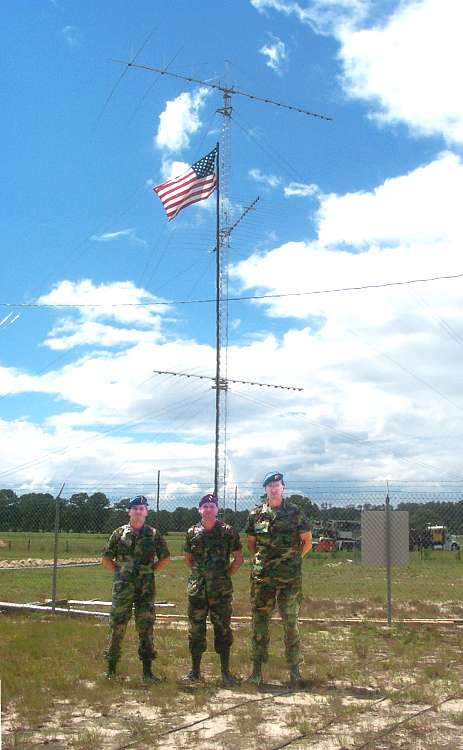

Some of the troops we met while
 building the antenna system.
There's Spaz the cat in the foreground		 The truck is all packed and ready
for the long drive back to Oregon
