Custom (Heavy-duty) Side Mount With Integrated Boom Truss Support

Side mounts are one piece welded construction and hot dipped galvanized.
Arms are made from 2" square tubing with an integrated truss support.

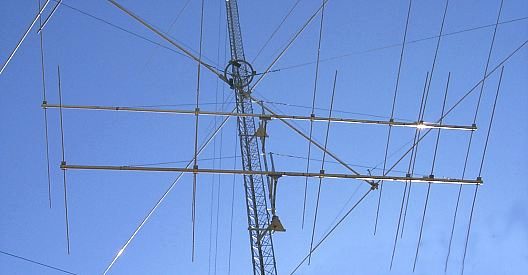

6 el Custom Made 15m Yagi (36' boom) @ 62'
6 el Custom Made 10m Yagi (30' boom) @ 52'

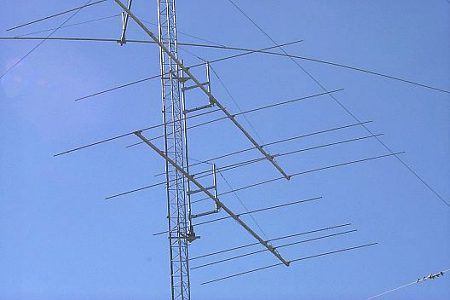

Side Mount & Yagi Photos

Paul - K7PN & Jeff - KG7KH

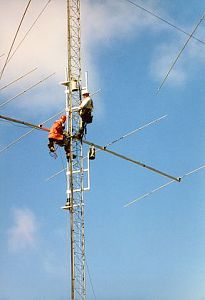

Installing the Side Mount, Rotor & Yagis

Custom Re-bar Cage for Tristao TMS-771 (71') Crank-up Tower
Orion 2800 Rotor & 20m Monobander Installation on Crank-up

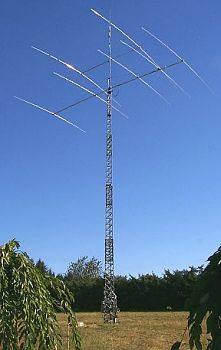

• Installed Tower w/20m Yagi (48' Boom) & 40m Yagi
  We also provided the 24' (2" x .250 wall) Galvanized Mast

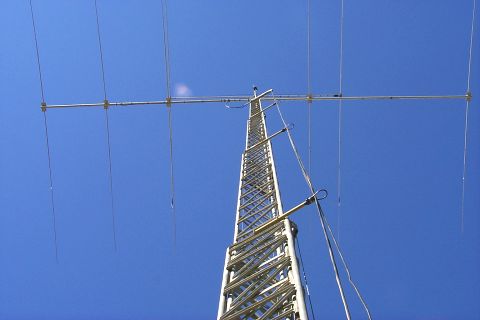

• Looking up the tower

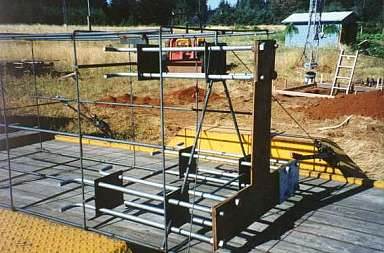

• Custom re-bar cage & anchor bolt assembly
• Removing the tower from its original location and transporting it to K7EM's

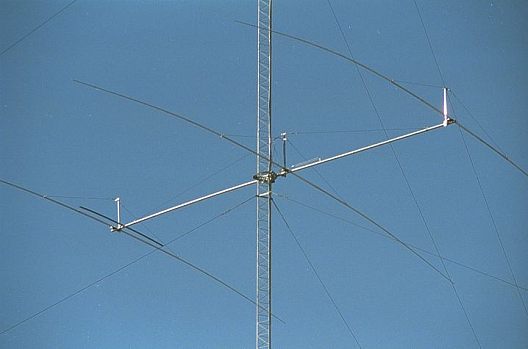

3/3 Full Size 40m Yagi Array - TIC General Ringrotors

165' Rohn 45G Tower With Full Size 40m Yagis

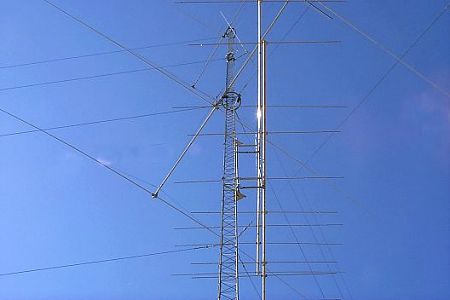

• Installed Side Mount w/15m & 10m Yagis

• Installed new Diamond 2 meter vertical at the top of the tower (170')

• Installed new M² 2 meter yagi antenna at the 120' level

• Replaced phase box and feedlines for each 40m yagi

• Installed additional 3/4" and 1/2" CATV hardlines up the tower

• Plumbed tower and tensioned guywires

Installed TIC Ringrotor (Model 1032)
for Bottom 40m Antenna @ 80 Feet.
